Engg Drawing Semester 2 July 2017

17/B/C/S-2/4/ED

J

PAPER-III
ENGINEERING DRAWING
(MORNING SESSION)
10TH PASS (TWO YEAR TRADES)
SEMESTER-II

Note: Attempt all questions.

1. Construct an ellipse having major axis as 120 mm and minor axis 60 mm using four centre method. (20)
2. Draw a regular hexagonal pyramid of base 5 cm side and height of 12 cm or a pentagonal prism of side 3 cm and height of 8 cm. (10)

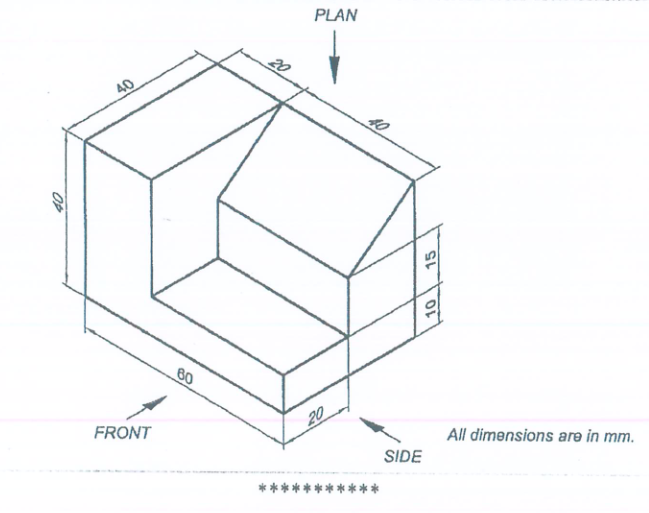

3. Draw the following views of the isometric view given below:

   1. Front view
   2. Side view
   3. Plan



   (45)

ED – 10TH PASS
