Engg Drawing Semester 2 July 2018

18/B/C/S-2/4/ED

L

PAPER – III
ENGINEERING DRAWING
(MORNING SESSION)
10TH PASS (TWO YEAR TRADES)
SEMESTER – II

Note: Attempt all questions.

1. Draw the following:

   1. Neat sketch of slotted nut.
   2. Any two type of screws with their nomenclature.
   3. Inscribe a regular heptagon in a circle if the length of one side of the heptagon is 20 mm.
   4. A plain scale of 1 cm = 5 m and show on it 37 m.
   5. Free hand sketch of cross peen hammer.
2. (5×6 = 30)

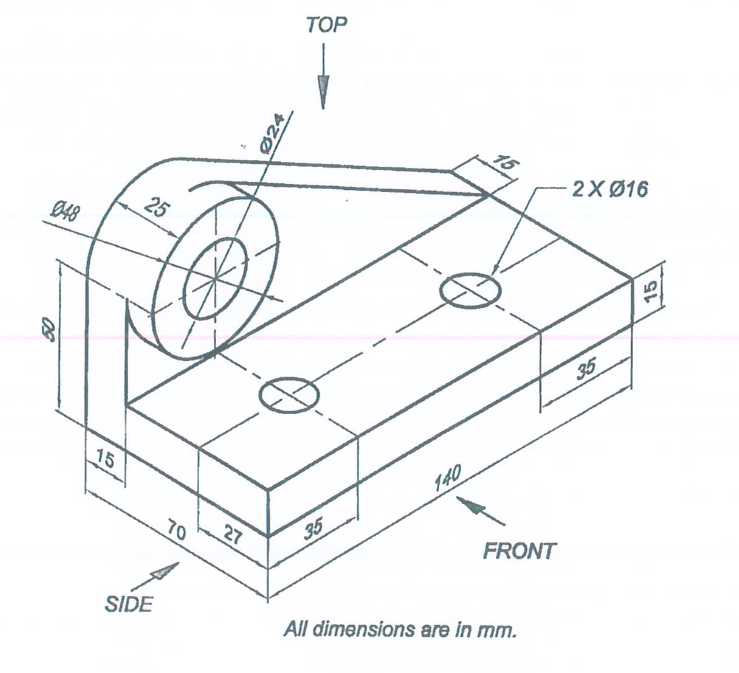

3. Figure shown below is horizontal shaft bearing. Draw the following orthographic views in third angle projection:

   1. Elevation from the given direction
   2. Side view from the given direction
   3. Top view from the given direction
4. (3×15 = 45)

ED – 10TH PASS
